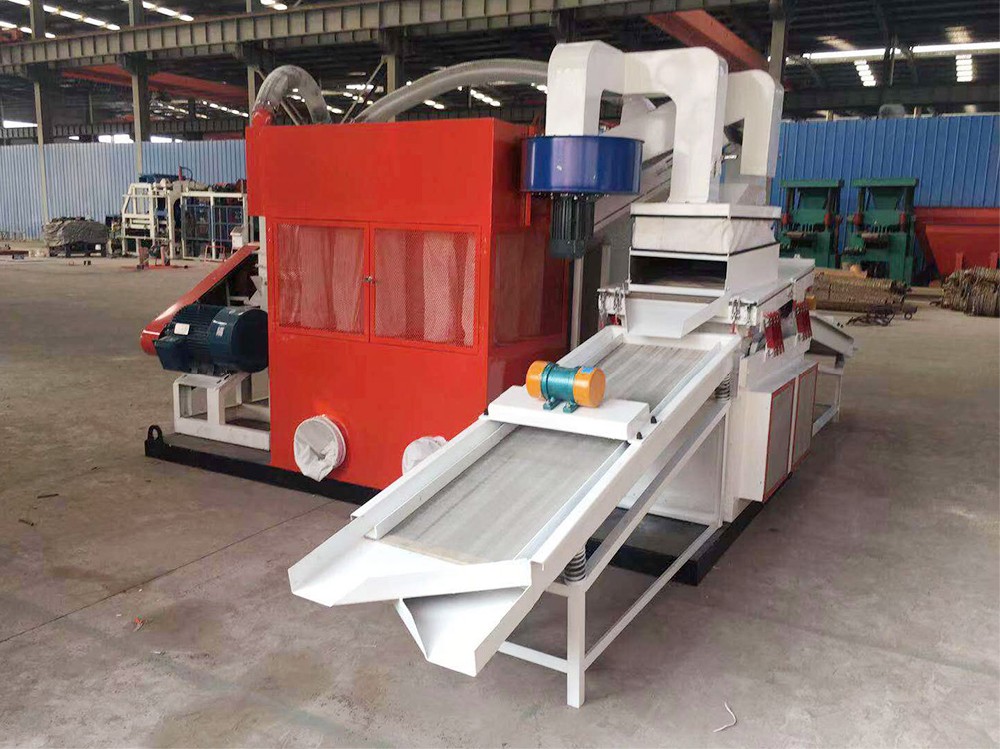

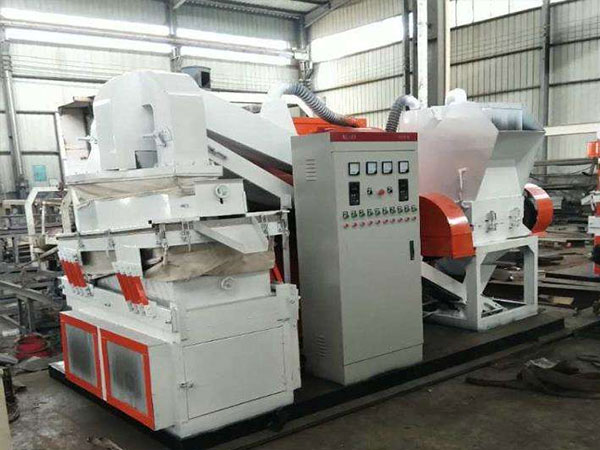

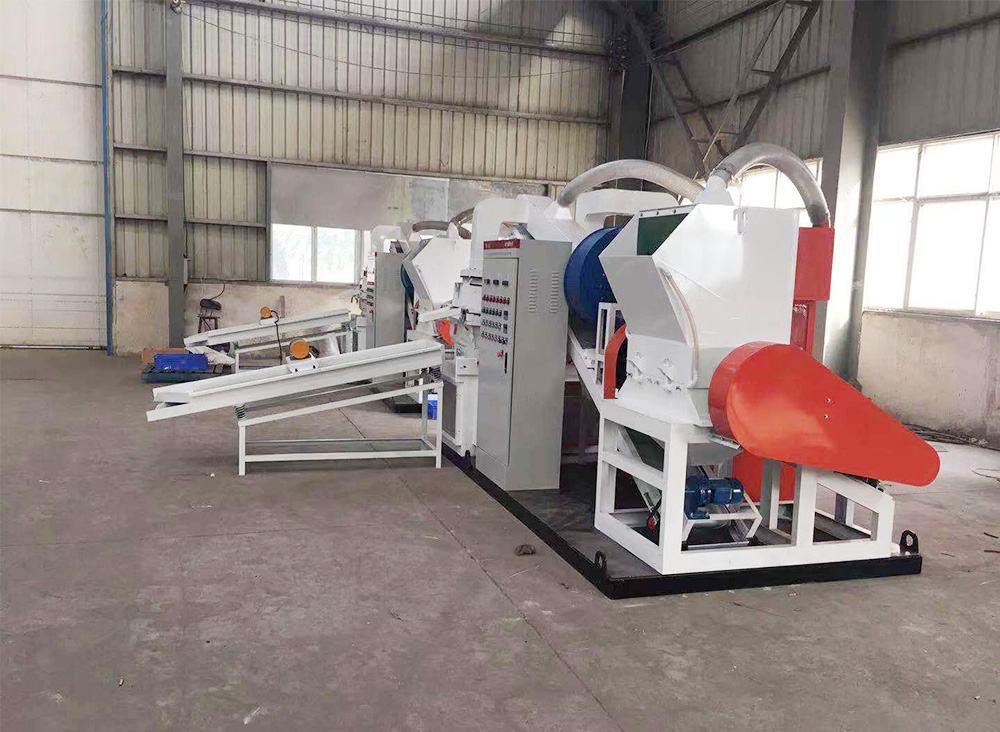

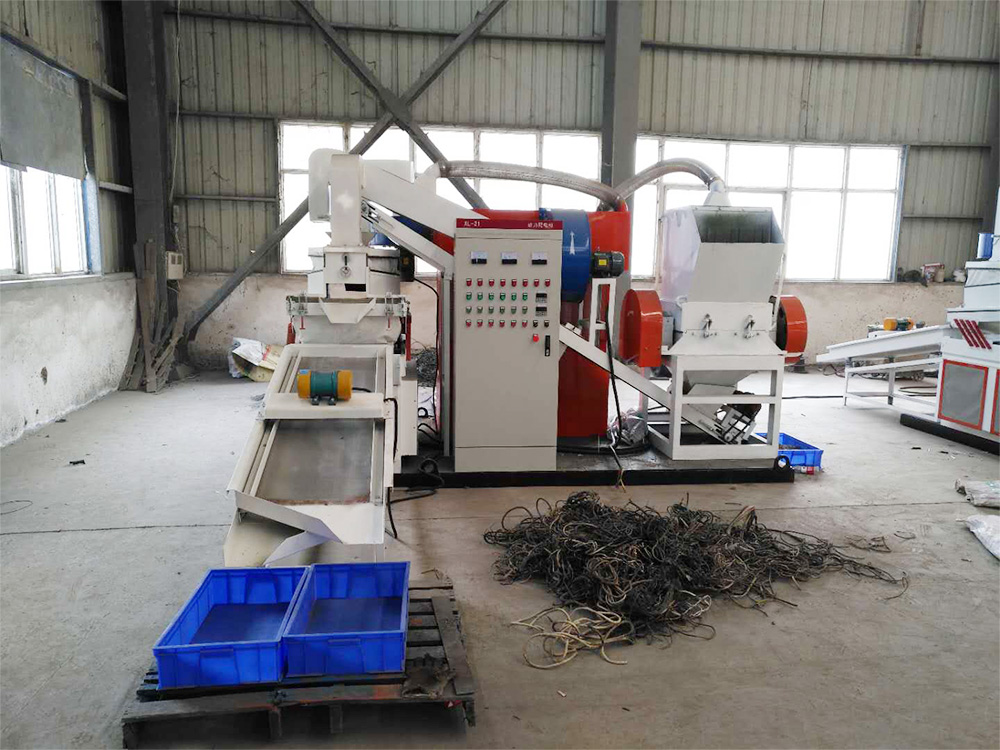

Electrostatic copper rice machine
throughput ： 800-1000 (kg/h)
application area ： Deal with waste communication wires, automobile wires, computer wires, telephone wires, household electrical wires and other oil-free wires.
Applicable materials ： Multiple strands of wool wire, aluminum wire, all kinds of electronic and electrical waste wire, automobile line, motorcycle line, computer line, civil power line, waste wire, automobile electrical route, communication cable, telephone line, household electrical wire, hair wire and so on all kinds of waste electrical cables and metal and non-metal mixture sorting.
Electrostatic copper rice machine is used for selecting copper rice, because its output is small 150-300kg/ hour, can be used as a small copper rice machine. It can also be used with other large equipment for selection. Electrostatic copper rice machine is used for all kinds of waste wire, wool wire, automobile electric route and other life wire recycling and processing separation machinery.
Working principle
Two different densities of substances under the action of the wind, through a certain Angle of the screen surface for amplitude movement generated by the deflection, so that the density of the copper wire attached to the screen to the
copper mouth forward, the density of the small plastic skin floating on the copper wire to the mouth, so as to achieve the purpose of copper plastic separation. The clean rate of separation is proportional to the diameter of a single copper wire, the thicker the diameter of a single copper wire and the cleaner the separation of plastic, the greater the unit time output, and the finer the diameter of a single copper wire and the worse the separation effect of plastic.
Advantage
Dry copper rice machine for a variety of wire and cable, household appliance lines, communication lines, computer lines and other wire stripping machine should not be processed scrap wire, size lines can be broken at the same time without classification, to achieve a variety of scrap wire metal and plastic dry separation and recycling. It has large production capacity, low power consumption, high sorting rate, one feeding, multi-machine cooperation
(crushing, conveying feeding, vacuuming and dry separation), automatic intelligent control, only one feeding can be produced, and advanced dust collection device. It not only improves the quality of recycled copper, but also
recycles plastics and solves environmental pollution at the same time.
Specifications
Model | (kg/h) | Power (kw) | Fan (kw) | Vibration motor (kw) |
EH-600 | 400-500 | 30 | 3.5 | 0.75 |
EH--800 | 600-800 | 45 | 7.5 | 1.5 |
EH--1000 | 800-1000 | 55 | 7.5 | 1.5 |
