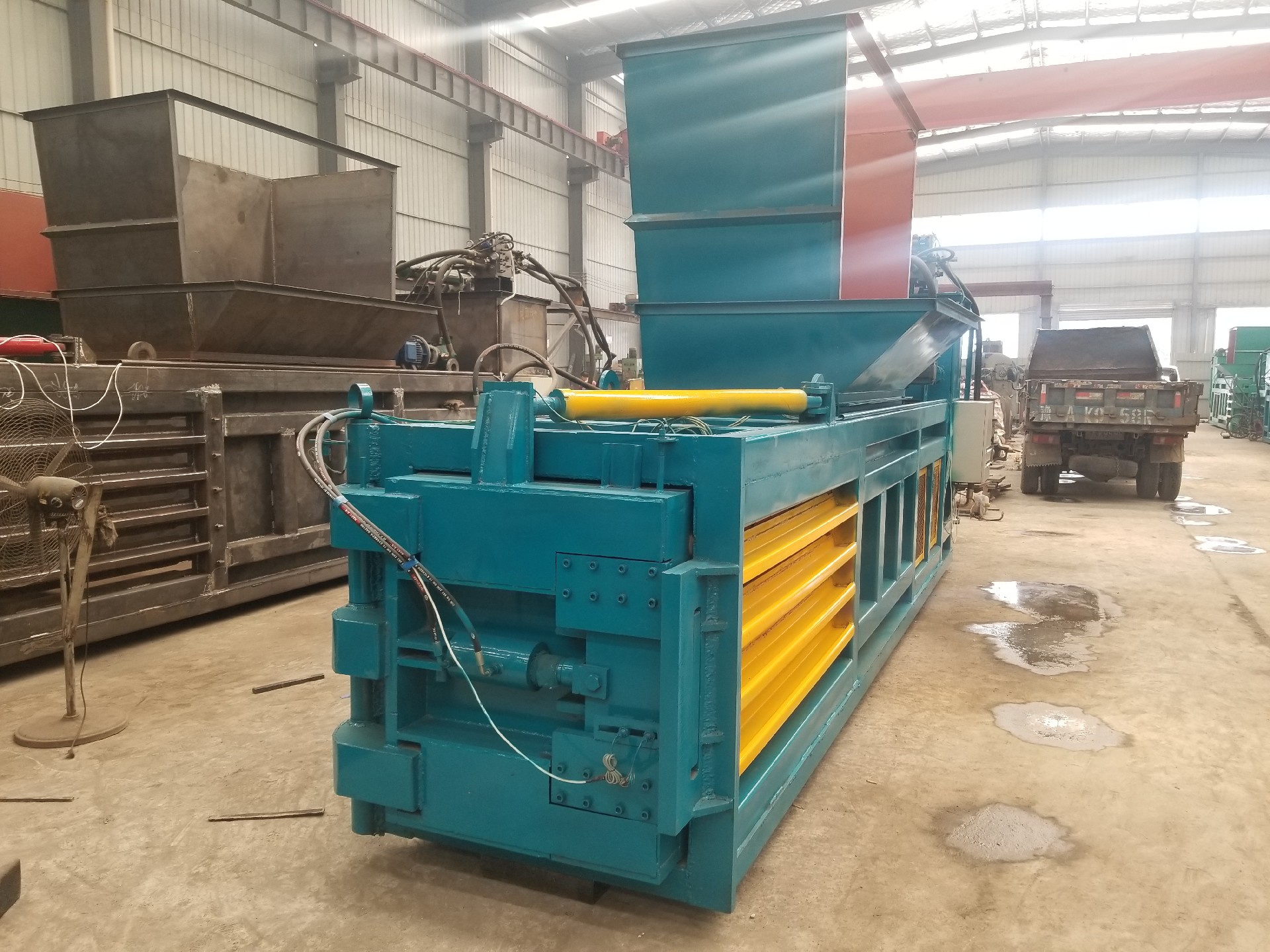

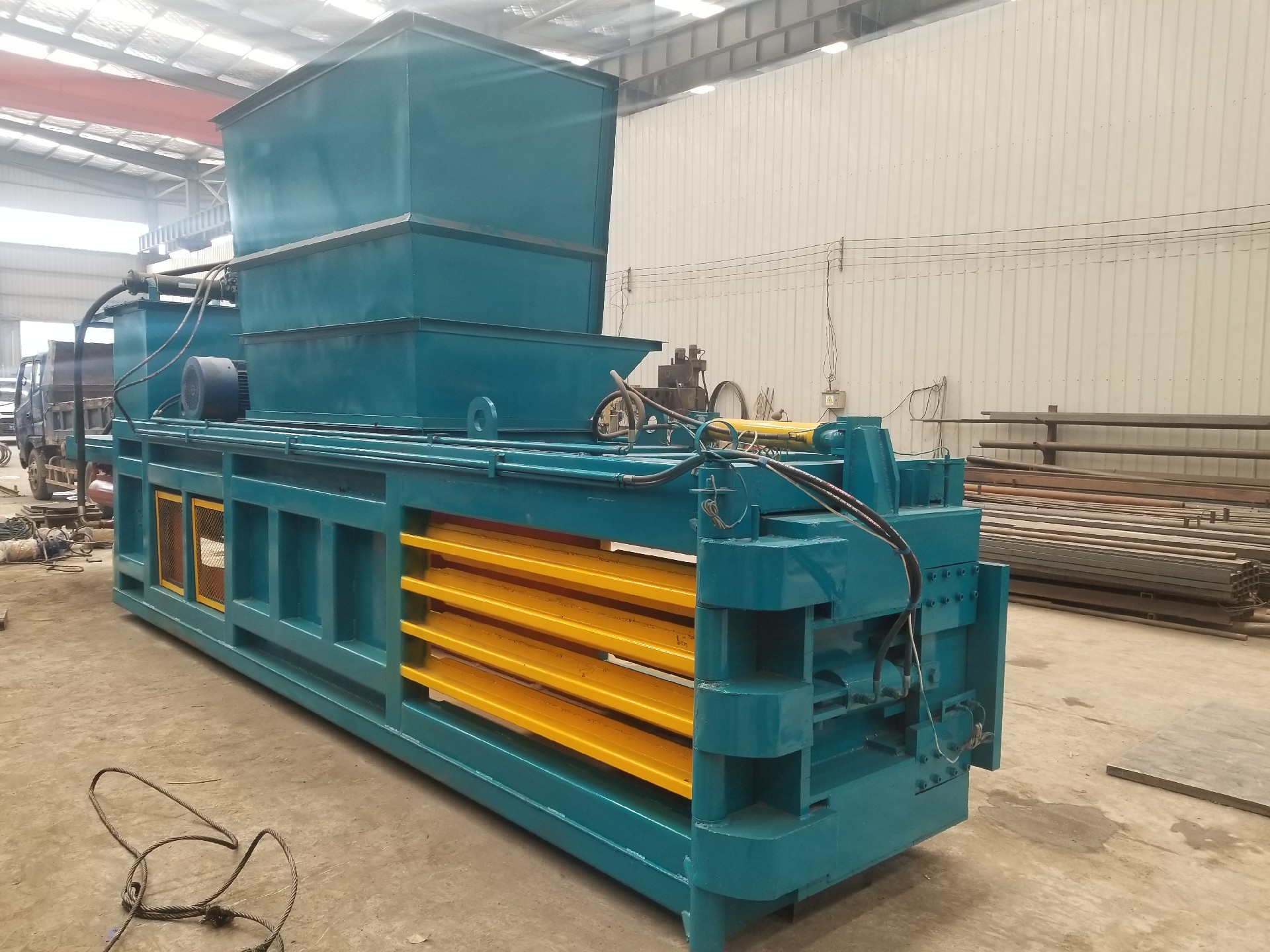

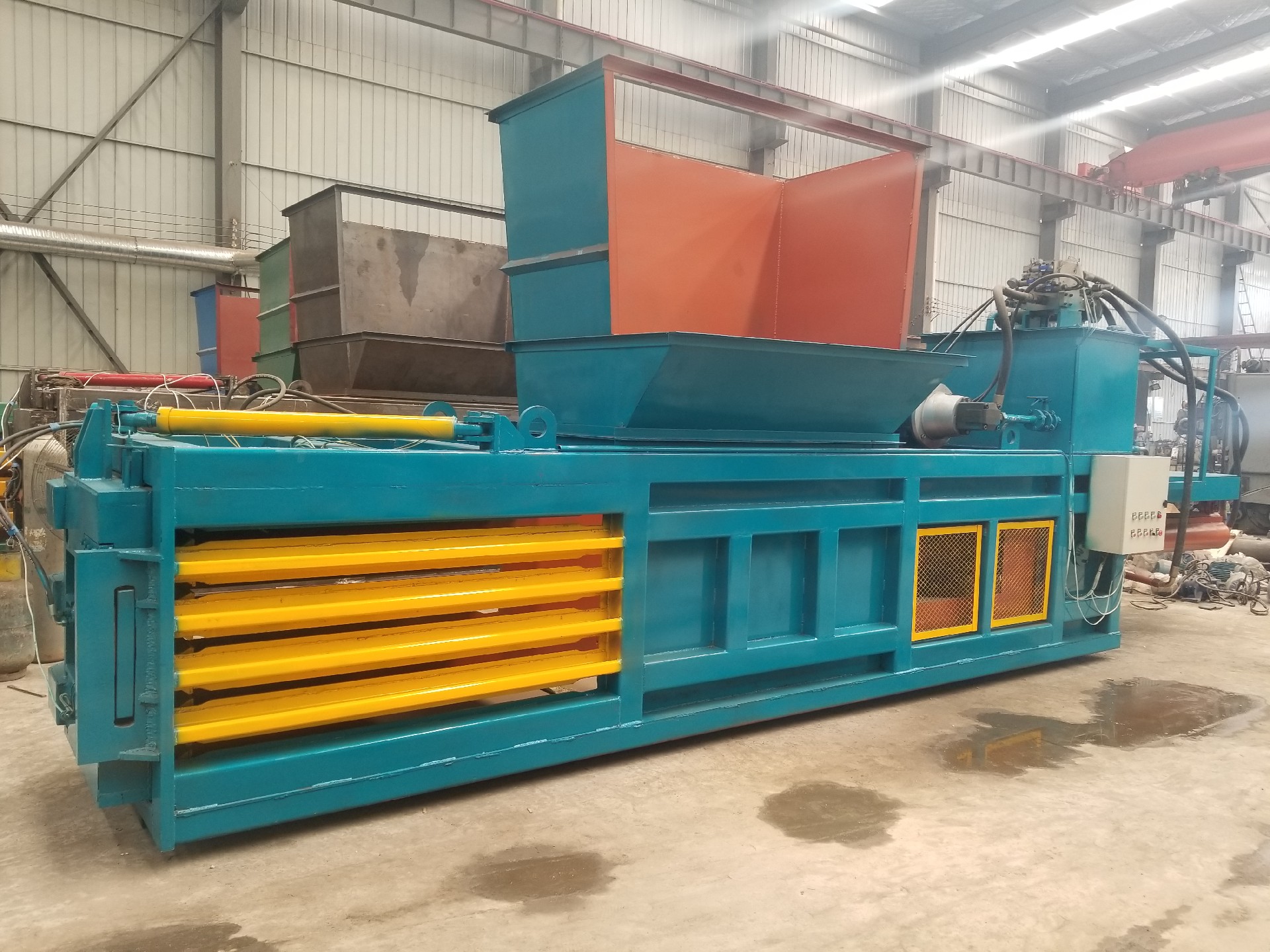

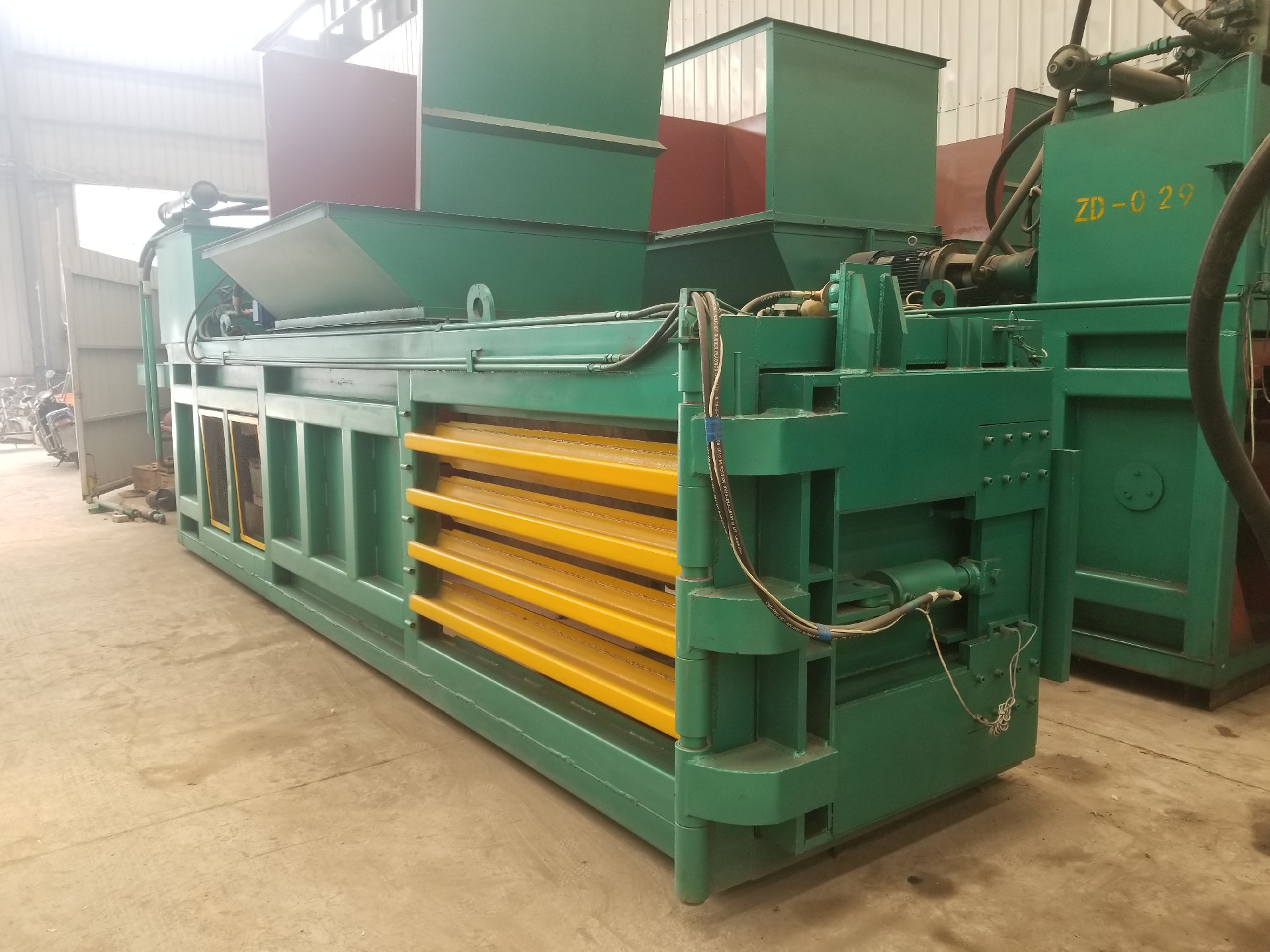

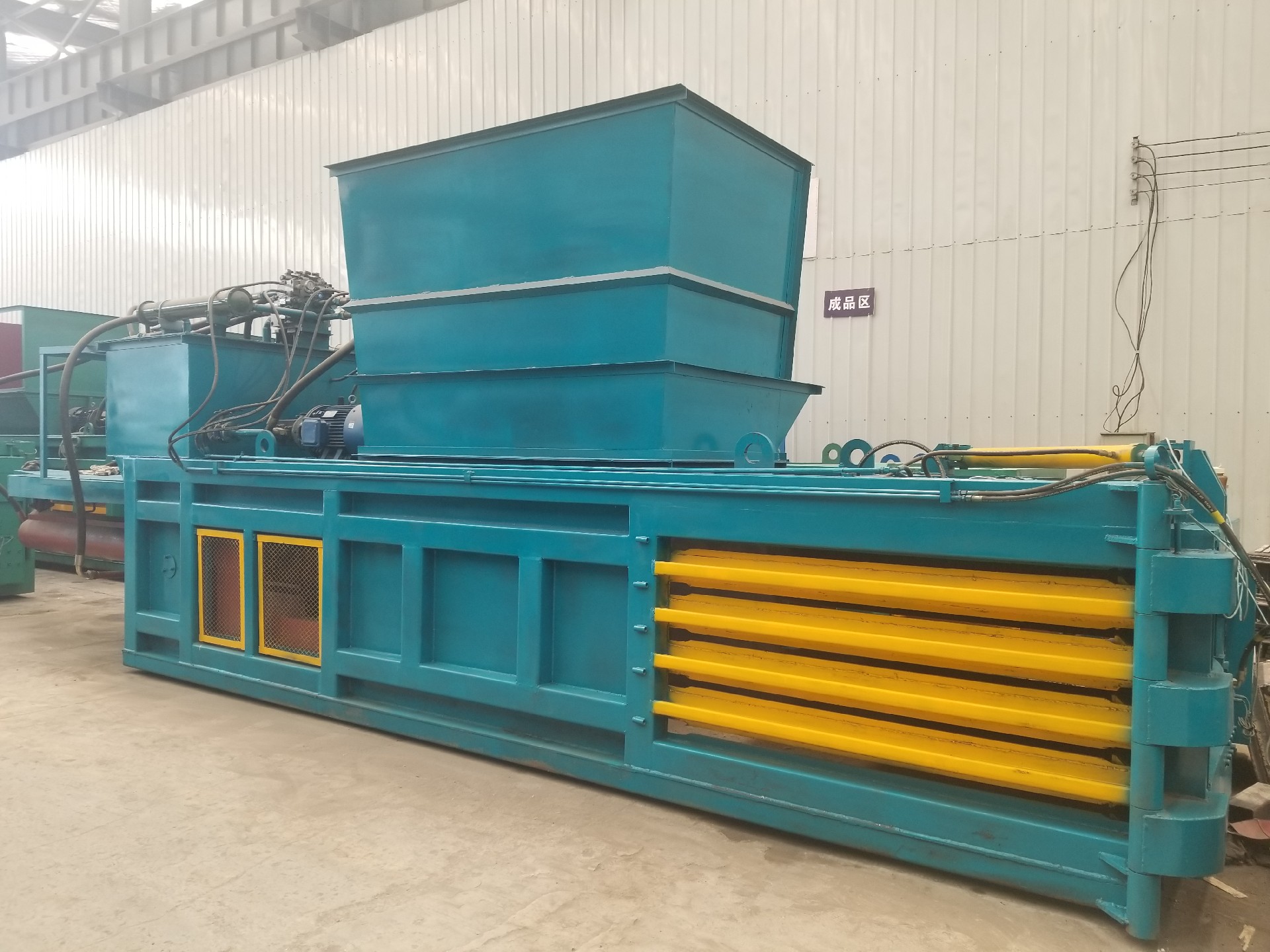

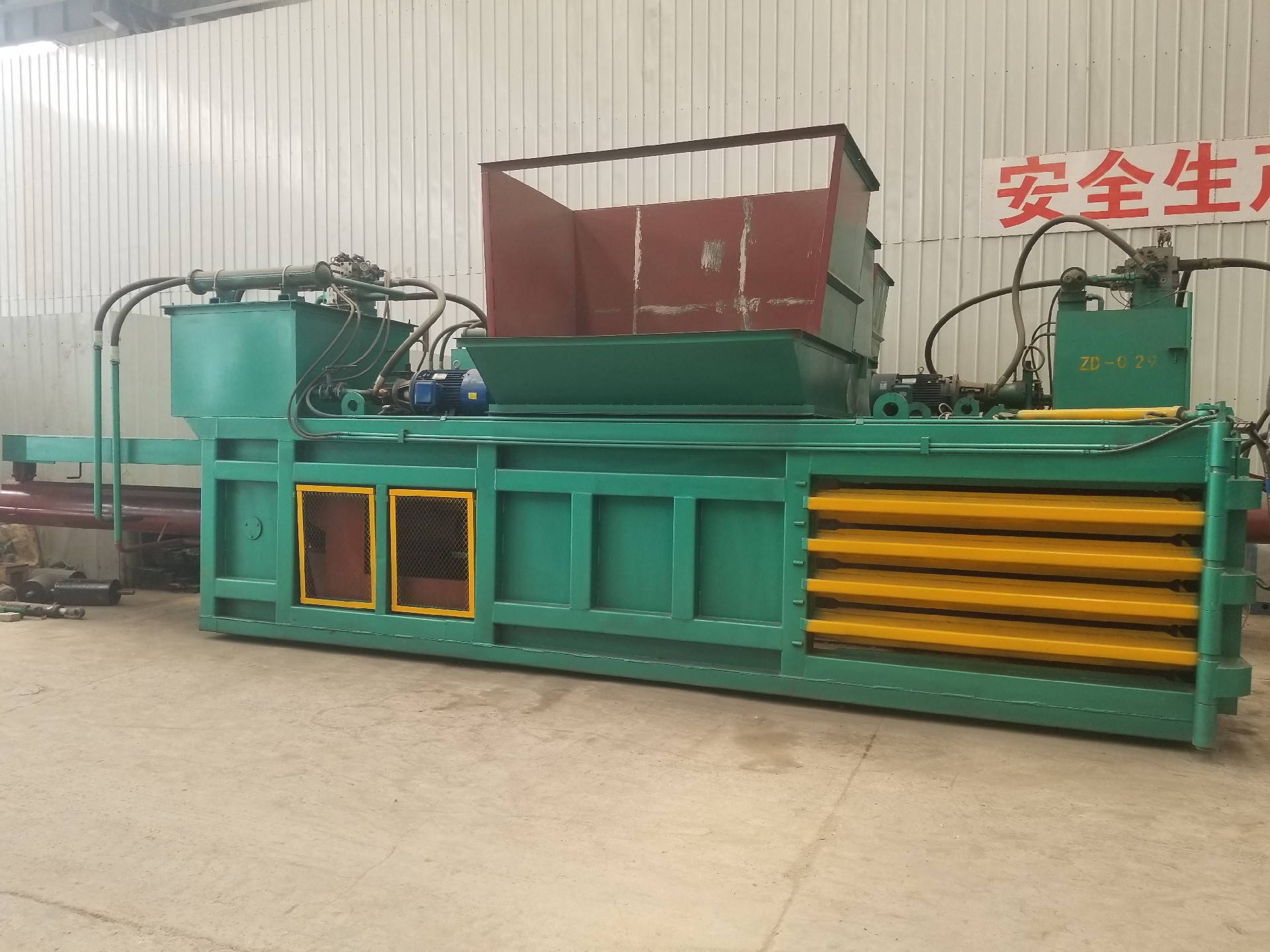

Plastic bottle baler
throughput ： Call for consultation
application area ： Waste plastic hydraulic baler is mainly used for packing loose materials, such as waste plastic, cardboard boxes, straw, straw, beverage bottles and other compression packaging.
Applicable materials ： Plastic bottle, plastic bucket, waste paper, waste paper box, waste paper board, cotton, wool, yarn, tobacco leaf, plastic, cloth, woven bag, knitting wool, hemp, sack, top, ball, cocoon, silk, hops, wheat wood, grass, garbage and other loose materials
Plastic bottle baler/mineral water bottle baler has the characteristics of good toughness and stability, beautiful appearance, easy operation and maintenance, safety and energy saving, and low investment cost of equipment basic engineering. It is widely used in all kinds of waste paper plants, waste recycling companies and other units and enterprises, suitable for the packaging and recycling of old waste paper, plastic straw, etc., is to improve labor efficiency and reduce labor intensity.
Working principle
The bottles enter the machine through a conveyor belt and undergo a series of compression and packaging processes to form a compact mass. These lumps can be stored centrally or transported directly to recycling businesses for processing. In the entire process, the compression and packaging of waste plastic bottles are completed by automated means, without manual intervention, so the efficiency is very high. The emergence of automatic waste plastic bottle
balers not only solves the problem of a large amount of waste plastic bottles, but also reduces storage and transportation costs. At the same time, because the device can compress waste plastic bottles into chunks, recycling companies can
more easily process and reuse them. Therefore, the automatic waste plastic bottle baler plays a very important role in the field of environmental protection.
Advantage
1, hydraulic configuration: fast and low noise hydraulic circuit system of oil recycling, the combination of domestic good components, both to ensure quality and reduce the cost, the performance of the whole machine is stable.
2, electrical configuration: choose PLC control, so that the circuit is simple, low failure rate, inspection and exclusion simple and fast.
3, cutting knife: the selection of universal scissors design, improve the efficiency of cutting paper, extend the service life of the blade.
4. Wire binder: newer wire binder, saving wire, binding fast, low failure rate, easy to clean and maintain.
5, conveyor: the conveyor belt is made of PVC new material, corrosion resistance and aging resistance, with the advantages of anti-slip, large throughput, strong load capacity and so on.
6, the length is free to set, accurately record the packaging value.
7, easy installation, simple foundation construction, no need for foundation reinforcement treatment.
Specifications
Model | Motor power (kw) | Fuel tank (L ) | Oil pump(L ) | Dimension(mm ) | Bale size (mm ) | Capacity (Blocks/Hour) | Weight (KG ) |
10 tons horizontal bar | 7.5 | 110 | 325 | 1450*600*2700 | 800*400*800 | 4-6 | 600 |
20 tons horizontal bar | 7.5 | 140 | 325 | 1450*600*2700 | 800*400*800 | 4-6 | 650 |
30 tons horizontal bar | 11 | 160 | 532 | 1650*800*2700 | 1000*600*800 | 4-6 | 750 |
30 tons parallel bars | 11 | 110 | 532 | 1650*800*2700 | 1000*600*800 | 4-6 | 750 |
40 tons parallel bars | 11 | 140 | 532 | 1650*800*2700 | 1000*600*800 | 4-6 | 750 |
60 tons parallel bars | 15 | 160 | 563 | 1850*2000*3150 | 1200*800*1000 | 4-6 | 1300 |
80 tons parallel bars | 18.5 | 180 | 563 | 1850*2000*3150 | 1200*800*1000 | 4-6 | 1750 |
100 tons parallel bars | 22 | 180 | 563 | 1850*2000*3150 | 1200*800*1000 | 4-6 | 1600 |
