Chicken manure dryer
throughput ： 0.4-76 t/h
application area ：
Applicable materials ：
Chicken manure dryer is suitable for large, medium and small chicken farms and aquaculture industry is more developed areas, according to the requirements of drying products, different heat sources can be used. Such as: gas producer, direct hot blast stove, indirect hot blast stove, thermal oil, electric heating, steam and so on. The machine is suitable for less than 65% of the water content of chicken manure, duck manure, livestock manure, slaughtering waste, etc., to open up feed resources, reduce feeding costs, reduce environmental pollution has a good effect.
Working principle

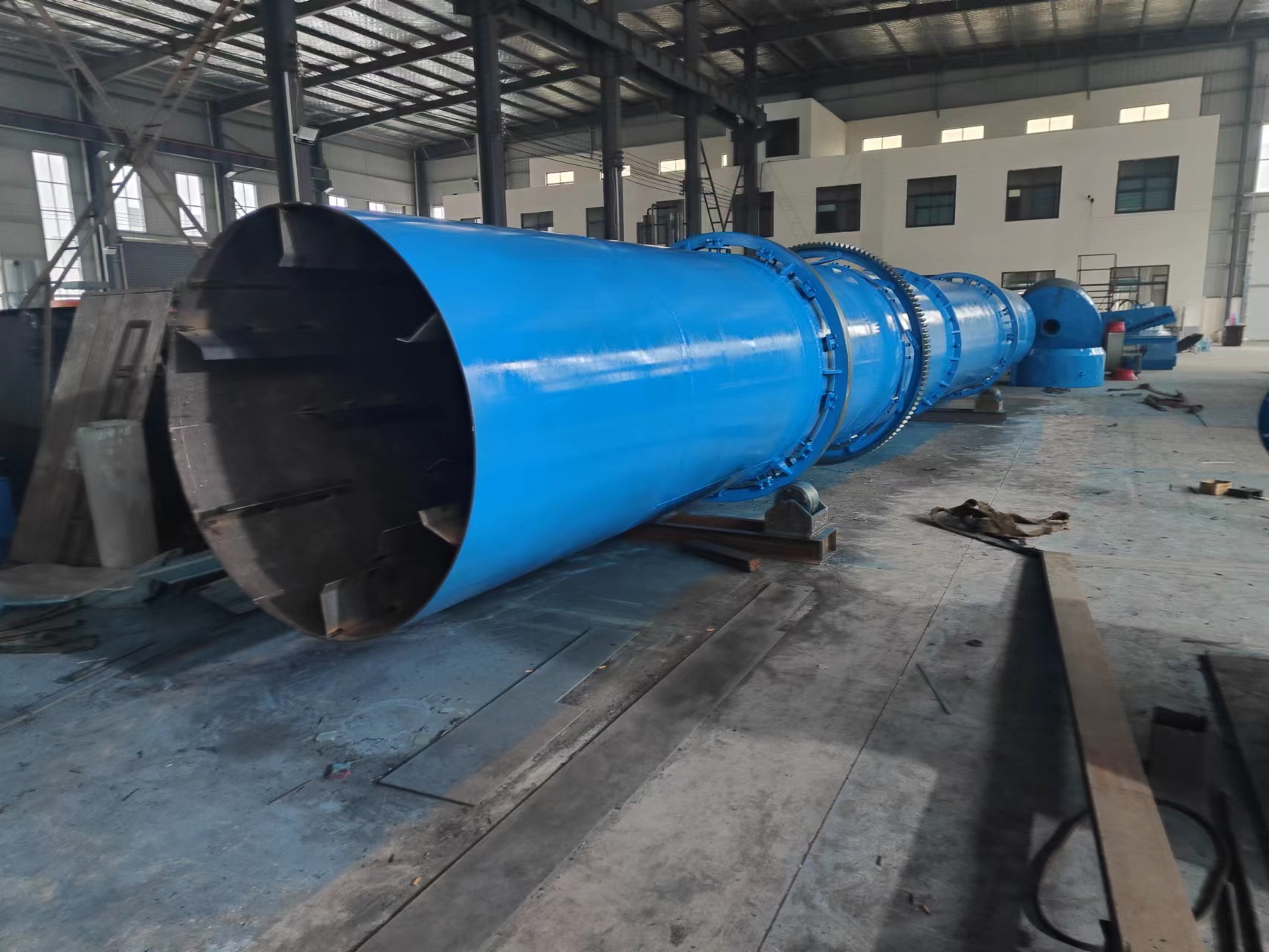

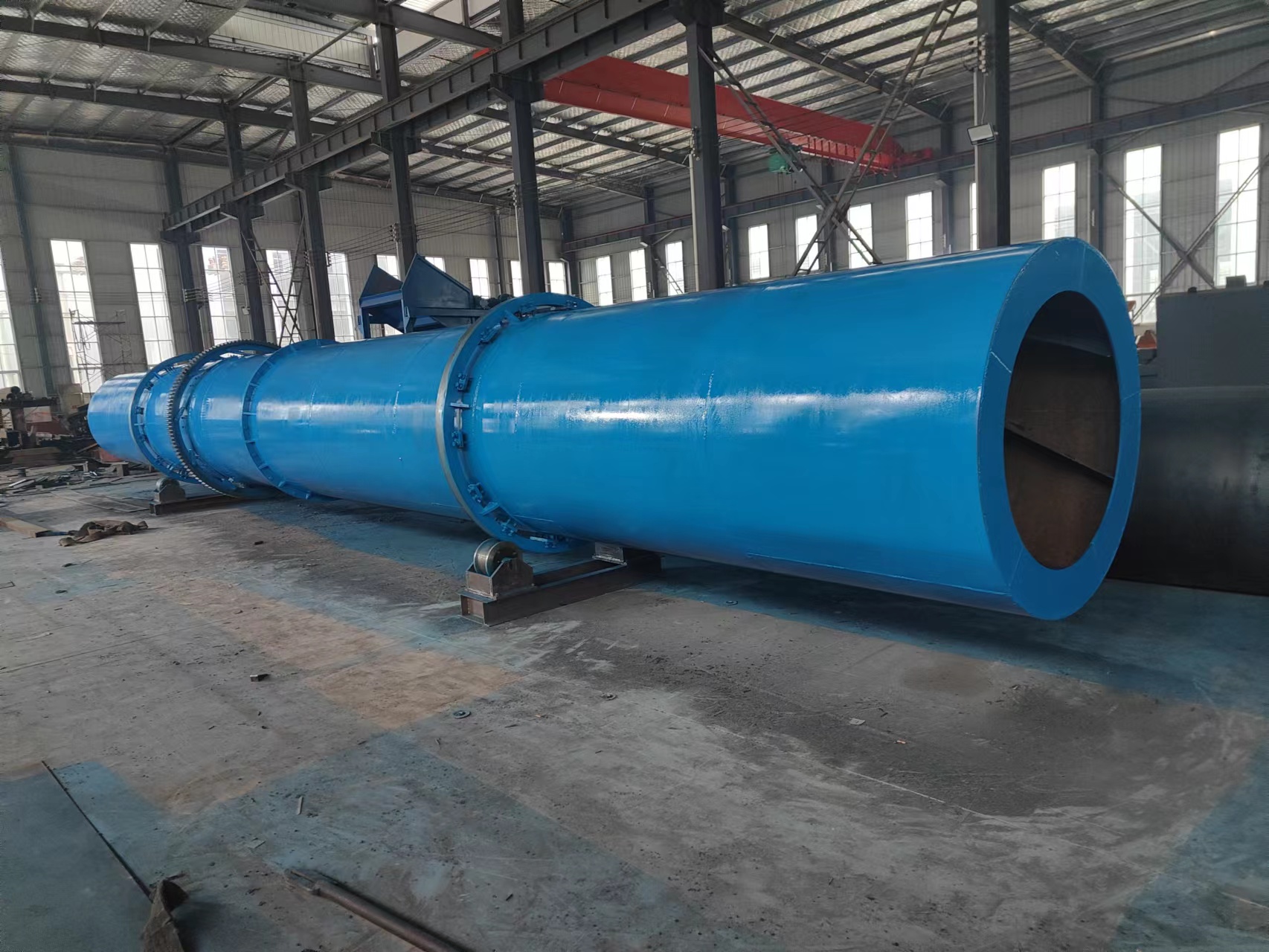

In the process of material drying: the wet material is sent to the hopper by the belt conveyor or bucket elevator, and then the feeder of the hopper enters the feeding end through the feeding pipe. The slope of the feeding pipe should be greater than the natural inclination of the material, so that the material can flow smoothly into the dryer. The dryer cylinder is a rotating cylinder that is slightly inclined to the horizontal line. The material is added from the higher end, the heat carrier enters from the lower end, and the material is in countercurrent contact, there is also a heat carrier and the material flow into the cylinder together in the cylinder body wall is equipped with a copy plate, its role is to copy the material up and spread, so that the contact surface of the material and the air flow increases, in order to improve the drying rate and promote the material forward.
Advantage
1, the production process of chicken manure dryer: the machine will contain 65% of water fresh chicken manure after high temperature drying, disinfection and sterilization, decomposition and other processes to dry the water content of 13% or less pure chicken manure organic fertilizer.
2, dried products: the organic fertilizer has a variety of nutrients necessary for crops. After testing by the scientific research department, it was determined that the nitrogen content of the fertilizer was 2.6%, the phosphorus content was 3.5%, the potassium content was 2.5%, the crude protein was 16-25%, and the organic matter was 45%. It is the best choice of fertilizer for
pollution-free green food cultivation, and can also be used to feed fish, cattle, pigs and so on.
3, chicken manure odorless drying mechanization degree is high, the production capacity is large, can be continuous operation.
4, excellent structure, simple, material through the cylinder resistance running smoothly, easy to operate.
5, less failure, low maintenance cost, low power consumption.
6, wide range of application, product drying uniformity is good.
7, drying can also achieve the purpose of sterilization and deodorization.
Specifications
Model | Barrel volume（m³） | Productive capacity（t/h） | Mounting slope（%） | Maximum intake air temperature（℃） | Main motor（kw) | Gross weight（t） |
Φ0.6×8.0 | 2.2 | 0.4～0.6 | 3～5 | 700～850 | 3 | 3.2 |
Φ0.8×10 | 5 | 1.0～1.3 | 3～5 | 700～850 | 4 | 4.4 |
Φ1.0×10 | 7.8 | 1.5～2.0 | 3～5 | 700～850 | 5.5 | 5.3 |
Φ1.2×10 | 11.3 | 2.4～3.0 | 3～5 | 700～850 | 7.5 | 8.1 |
Φ1.2×12 | 13.5 | 2.7～3.4 | 3～5 | 700～850 | 11 | 9.1 |
Φ1.5×12 | 21.2 | 4.5～5.7 | 3～5 | 700～850 | 15 | 14.6 |
Φ1.5×15 | 26.5 | 5.7～7.1 | 3～5 | 700～850 | 15 | 16.5 |
Φ1.8×12 | 30.5 | 6.5～8.1 | 3～5 | 700～850 | 18.5 | 21.90 |
Φ1.8×18 | 45.8 | 9.0～11 | 3～5 | 700～850 | 18.5 | 26.6 |
Φ2.0×20 | 62.8 | 12～16 | 3～5 | 700～850 | 22 | 36.50 |
Φ2.2×22 | 83.6 | 17～21 | 3～5 | 700～850 | 30 | 43.90 |
Φ2.4×22 | 99.5 | 21～27 | 3～5 | 700～850 | 45 | 53.10 |
Φ2.5×25 | 122.7 | 24～30 | 3～5 | 700～850 | 45 | 62.00 |
Φ2.6×24 | 127.4 | 27～34 | 3～5 | 700～850 | 45 | 63.00 |
Φ2.8×28 | 172.4 | 34～43 | 3～5 | 700～850 | 45 | 85.00 |
Φ3.0×25 | 176.6 | 36～47 | 3～5 | 700～850 | 75 | 89.00 |
Φ3.2×25 | 201 | 40～54 | 3～5 | 700～850 | 90 | 95.00 |
Φ3.4×28 | 254 | 51～64 | 3～5 | 700～850 | 110 | 122.00 |
Φ3.6×28 | 285 | 57～76 | 3～5 | 700～850 | 160 | 129.00 |
