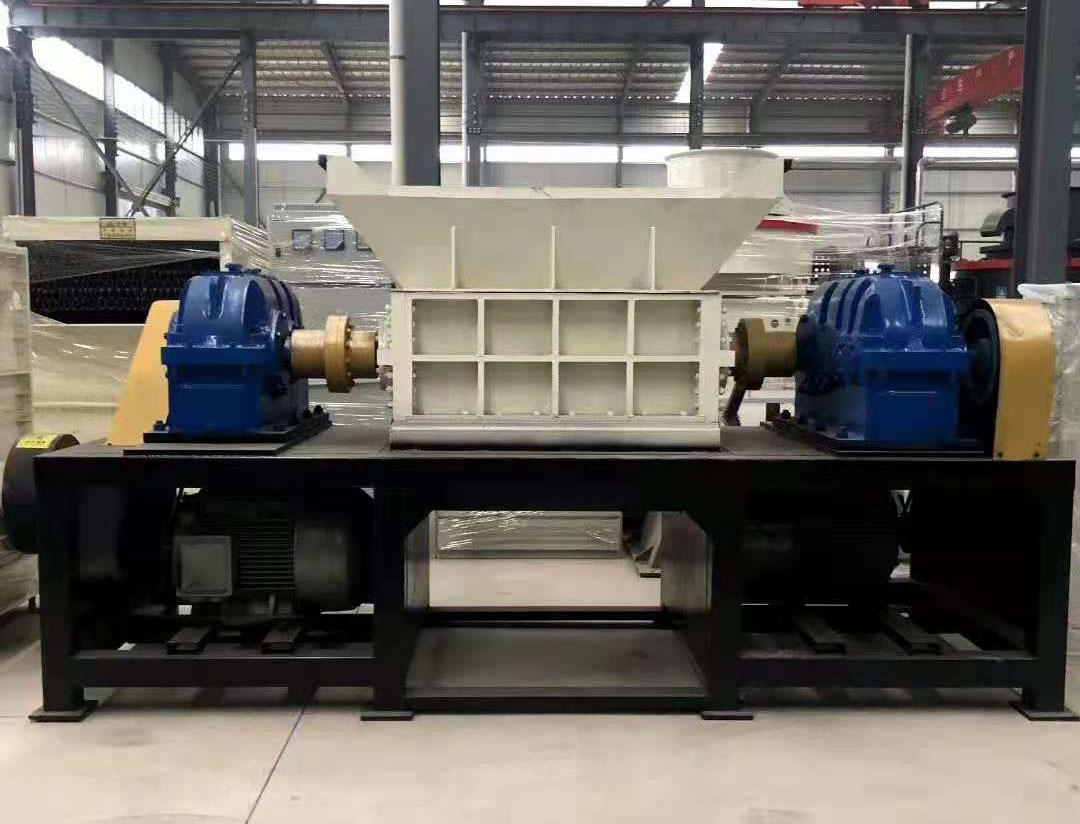

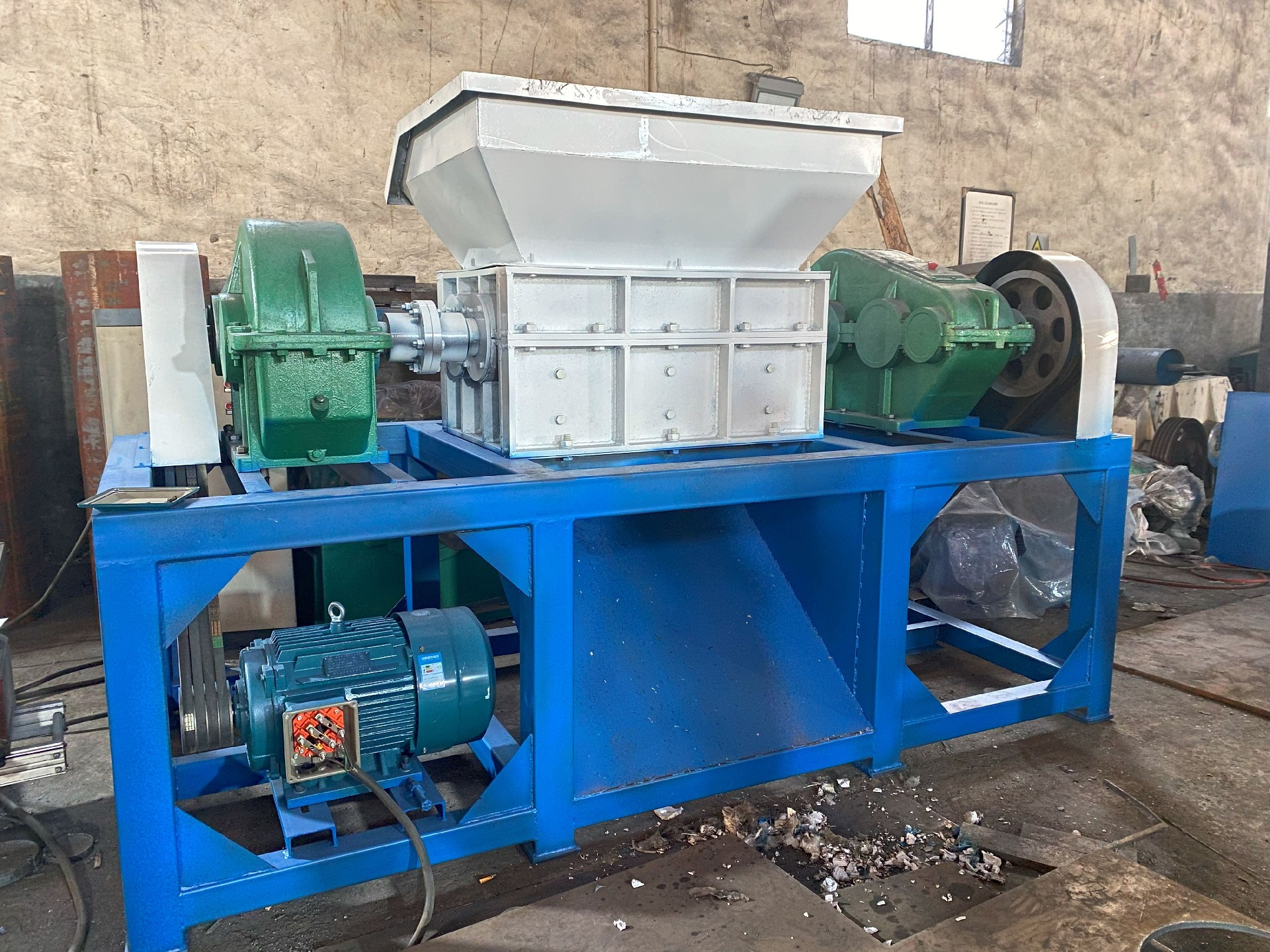

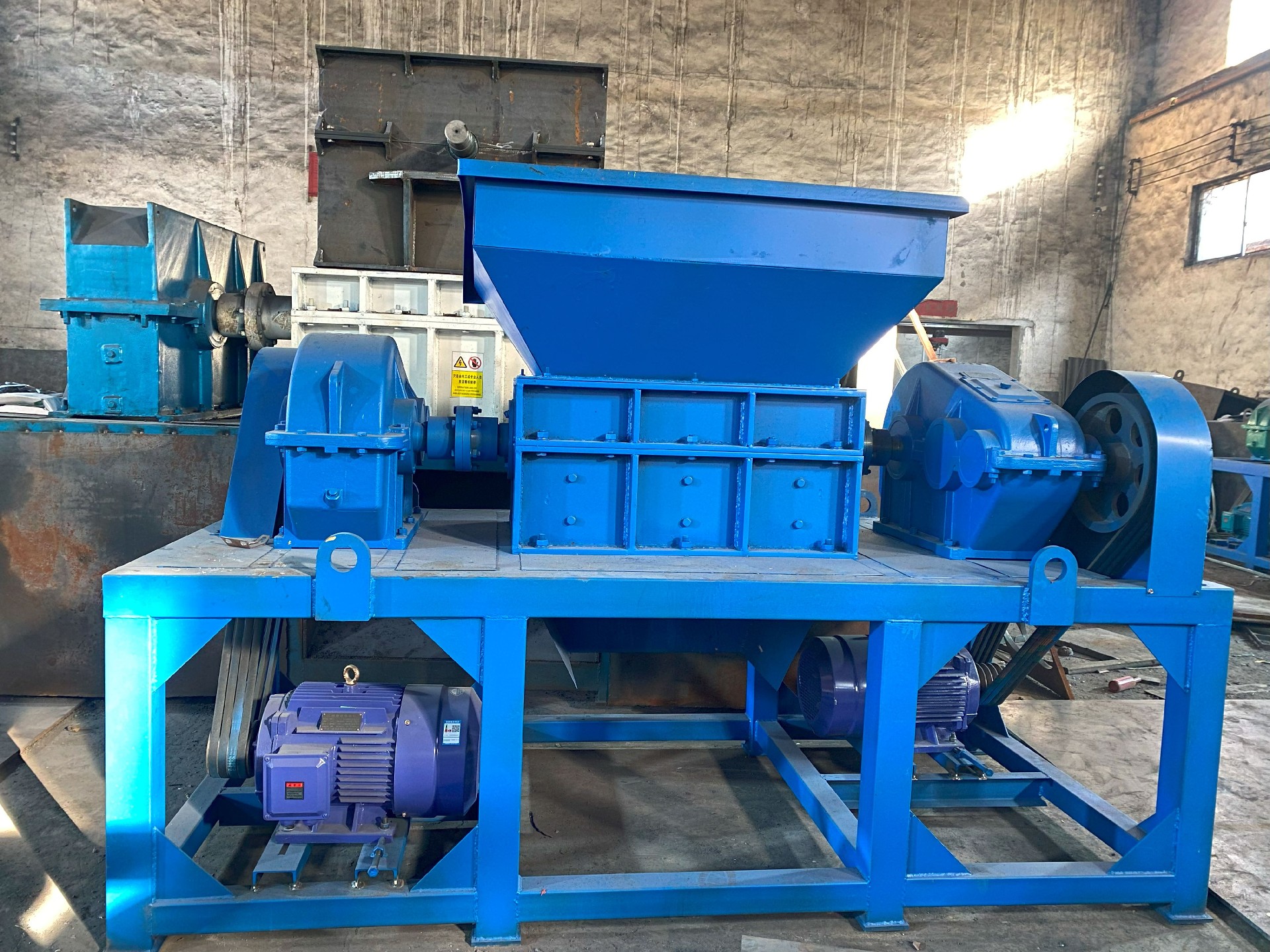

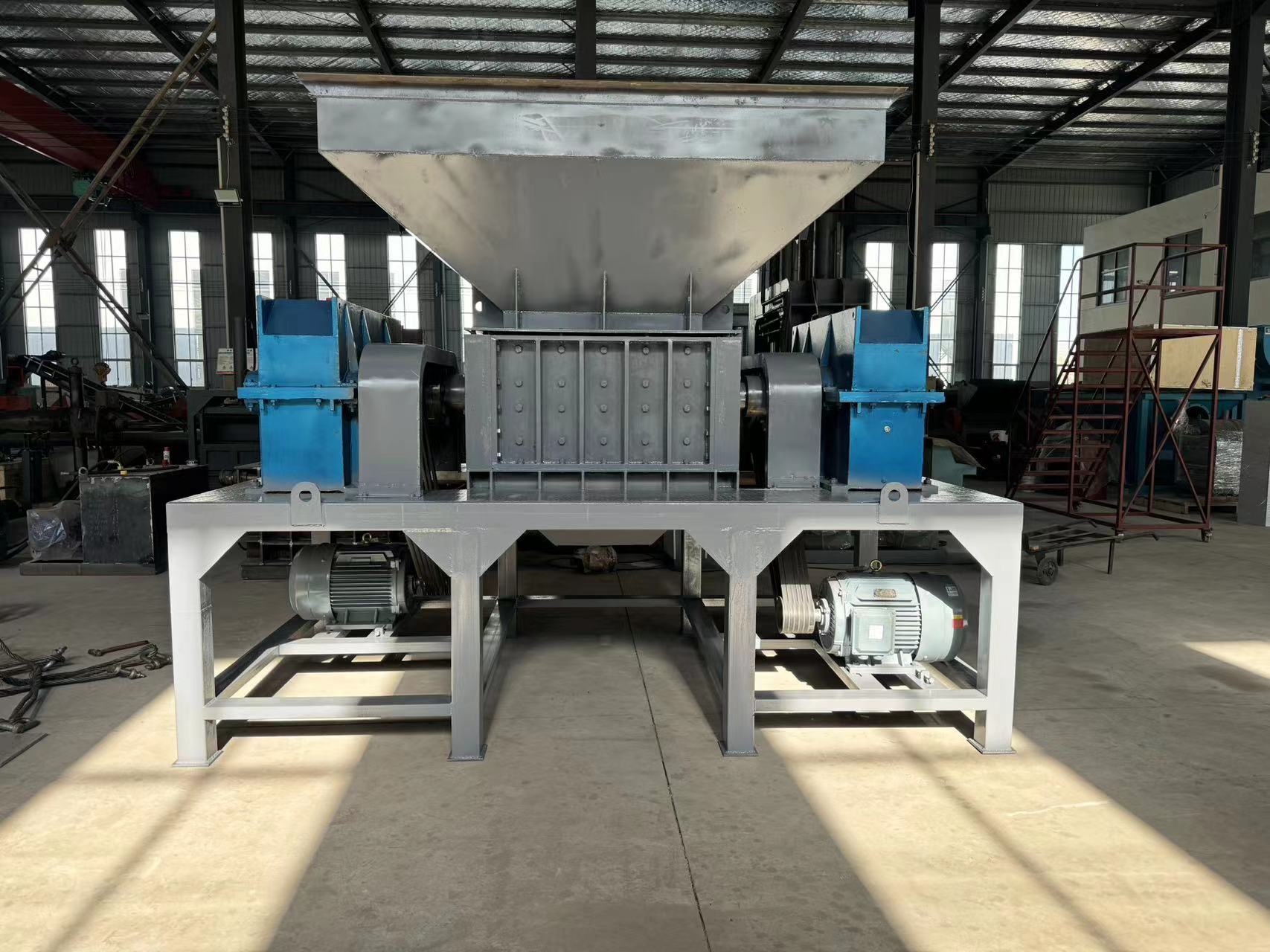

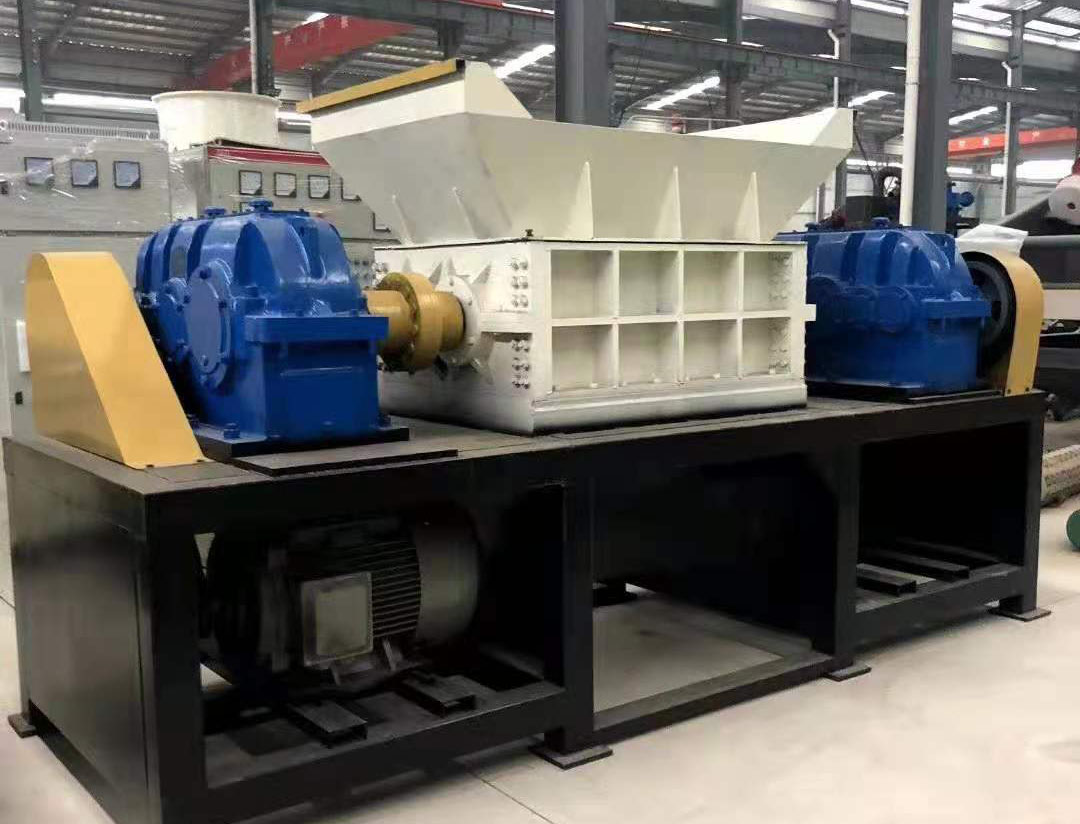

Scrap shredder
throughput ： Call for consultation
application area ： Industrial waste recycling, medical recycling, electronic manufacturing, pallet manufacturing, wood processing, domestic waste recycling, plastic recycling, tire recycling, paper and other industries.
Applicable materials ： Scrap car shell, domestic waste, plastic, metal, wood, waste rubber, packaging barrels, pallets, ton bags, waste plastics and other large materials
Scrap shredder is widely used in all kinds of solid waste crushing operations, in biomass, domestic waste, tires, metal, industrial waste, electronic waste, plastic and paper crushing can be applied. Because this metal shredder has many advantages, especially can handle solid waste containing large metals or other unbreakable items, thanks to its configuration of heavy alloy blades not only strength and hardness, but also have automatic reverse protection when encountering unbreakable materials. In addition, the alloy blade can be directly surfacing after wear, which greatly extends the overall service time of the blade.
Working principle
Scrap steel shredder blade is made of high strength alloy steel, has strong wear resistance and high strength and other characteristics, differential operation between shafts, tearing, extrusion, bite and other functions, professional design for broken metal, with uniform discharge, large output, low noise and other advantages.
Advantage

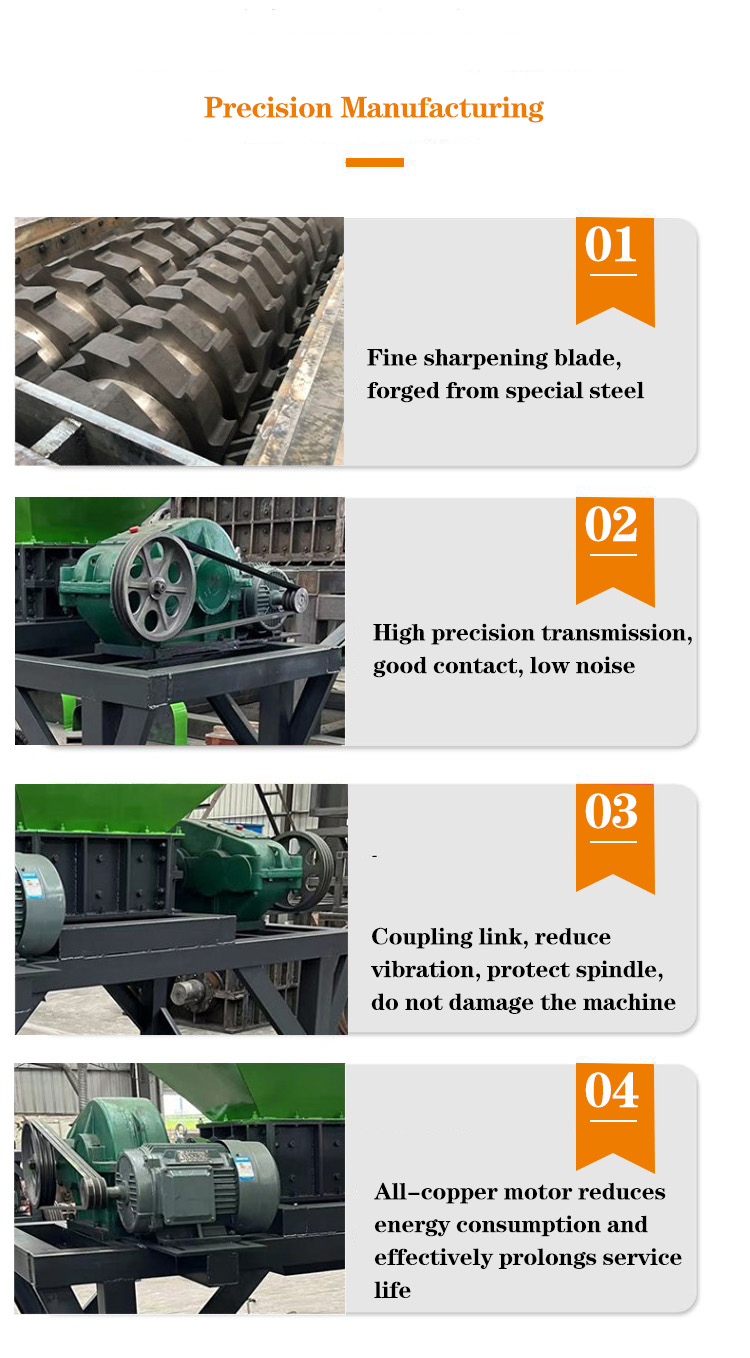

1, the use of "motor + reducer" drive design, to provide large shear force, to ensure higher crushing efficiency. It is often used for the fine crushing of solid waste, and the material can be processed to a smaller particle size at one time.
2, the torsion arm type hydraulic press device can push the material smoothly and effectively to the crushing area; Hydraulic auxiliary maintenance door, hydraulic auxiliary screen open, closed structure open with a key, the greater convenience of the tool, screen replacement, repair and maintenancework. ;
3, combined screen structure design, can be independently replacedaccording to the use of conditions, effectively reducing maintenance costs.

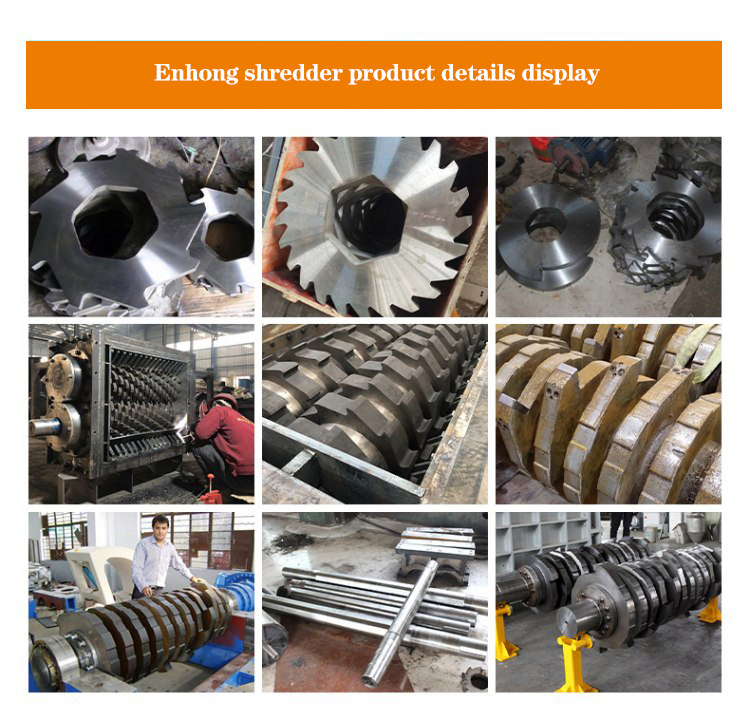

4, each knife can be independently disassembled and installed, can be quickly disassembled in a short time, greatly reducing the workload of workers, improve the continuity of production.
Specifications
Model | Overall dimensions (L W H)(mm) | Crushing chamber size (mm) | Blade diameter (mm) | Blade thickness (mm) | Number of blades (pieces) | Power (kw) | Weight (kg) |
500 | 2800×1300×1850 | 500×480 | 200 | 20 | 24 | 11×2 | 2200 |
800 | 3000×1300×1850 | 800×480 | 200 | 20 | 40 | 15×2 | 2500 |
1000 | 3300×1900×2200 | 1000×690 | 300 | 40 | 24 | 22×2 | 5200 |
1200 | 3600×2000×2200 | 1200×690 | 300 | 40 | 30 | 30×2 | 6400 |
1500 | 4180×2100×2400 | 1500×850 | 550 | 50/75 | 30/20 | 55×2 | 9000 |
1800 | 5800×2400×3300 | 1800×1206 | 550 | 50/75 | 36/24 | 75×2 | 13600 |
2000 | 6400×2700×3500 | 2000×1490 | 600 | 50/75 | 40/26 | 90×2 | 20100 |
2500 | 7500×3200×3800 | 2500×1800 | 600 | 75/100 | 32/24 | 110×2 | 25000 |
3000 | 8600×3500×4000 | 3000×1800 | 600 | 75/100 | 40/30 | 160×2 | 31000 |
Remark：1.The number, diameter and thickness of blade claws can be customized according to the type of material and discharge size; 2. Different types of materials and discharge sizes, equipment output will be differen | |||||||
